Clean lines in a timeless design

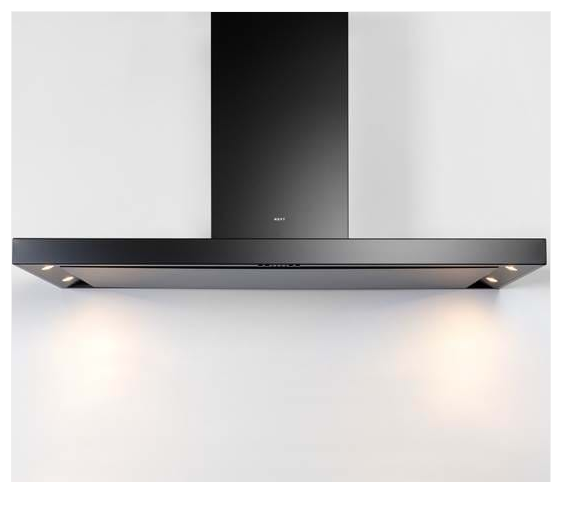

The Novy 7612 Flatline wall mounted hood is the perfect choice for a modern and stylish kitchen. With a width of 120 cm and a sleek black finish, this wall mounted hood not only provides efficient extraction but also an aesthetic solution for any kitchen environment. Equipped with a powerful motor and quiet operation, the Novy 7612 ensures a pleasant cooking environment. With its low-profile construction and easy-to-clean design, this wall mounted hood is a perfect addition to any modern kitchen. Order the Novy 7612 Flatline wall mounted hood now for an effective and stylish kitchen solution!

What are the features of the Novy 7612 Flatline wall mounted hood?

• Extra slim lines
• seamless finish
• subtle LED lighting (2700K)
• Reversible chimney for recirculation supplied as standard

Energy label

• Energy efficiency class (ERI bonnet): A+
• Annual energy consumption (kWh/year) (ECO bonnet): 33,7
• Lighting efficiency class (LED bonnet): A
• Fan efficiency class (FDEDuction bonnet): A
• Grease filter efficiency class (GFE bonnet): D

Functions and features

• Operation: Push button
• Speed levels: 3 + power
• Power level with automatic switch-back (minutes): 6
• Motor: Integrated
• Integrated sound insulation: Integrated
• Recirculation: Optional
• InTouch function: Optional
• Auto stop: Yes
• Run-on time (minutes): 10
• Number of metal grease filters: 1
• Metal grease filter: 7400020
• Grease filter saturation indicator: Yes
• Recirculation filter saturation indicator: Yes

Lighting

• Functional lighting: Led
• Ambient lighting type: Not applicable
• Dimmable lighting: Yes
• Soft-ON/OFF: Yes
• Number of functional lights: 4
• Total functional lighting consumption (W): 12
• Temperature mood lighting: Not applicable

Dimensions

• Advised mounting height induction hobs (Hmin-Hmax) (mm): 650 - 750
• Product dimensions exhaust air (WxDxHmin-Hmax) (mm): 1198 x 554 x 660 - 1050
• Product dimensions recirculation (WxDxHmin-Hmax) (mm): 1198 x 554 x 730 - 1120
• Max height with shaft extension exhaust air (mm): 1410
• Max height with recirculation shaft extension (mm): 1480
• Installation height between worktop and underside of cooker bonnet with electric or ceramic hob (Hmin-Hmax) (mm): 600 - 750
• Mounting height between worktop and underside of cooker bonnet with gas hob (Hmin-Hmax) (mm): 650 - 750
• Exhaust air spigot diameter (mm): 150
• Exhaust air spigot position: Top

Air flow and sound pressure level

• Motor power exhaust air stage 1 (m³/h) / max. pressure exhaust air stage 1 (Pa): 259 / 83
• Motor power exhaust air stage 2 (m³/h) / max. pressure exhaust air stage 2 (Pa): 420 / 247
• Motor power exhaust air stage 3 (m³/h) / max. pressure exhaust air stage 3 (Pa): 550 / 380
• Motor power exhaust air max. power stage (m³/h) (Qboost) / max. pressure exhaust air max. power stage (Pa): 631 / 381
• Sound pressure level exhaust air stage 1 (dB(A)) / Sound power level exhaust air stage 1 (dB(A)): 26 / 36
• Sound pressure level exhaust air stage 2 (dB(A)) / Sound power level exhaust air stage 2 (dB(A)): 38 / 49
• Sound pressure level exhaust air stage 3 (dB(A)) / Sound power level exhaust air stage 3 (dB(A)): 44 / 55
• Sound pressure level exhaust air max. power stage (dB(A)) / Sound power level exhaust air max. power stage (dB(A)) (LWAboost): 48 / 59

Technical data

• Maximum power (W): 117
• Voltage (V): 220-230
• Frequency (Hz): 50
• Cable length (m): 1.3
• Power consumption in stand-by mode (Ps) (W): 0.25
• Weight (kg): 35.6
