Precision and Performance for Industrial Applications

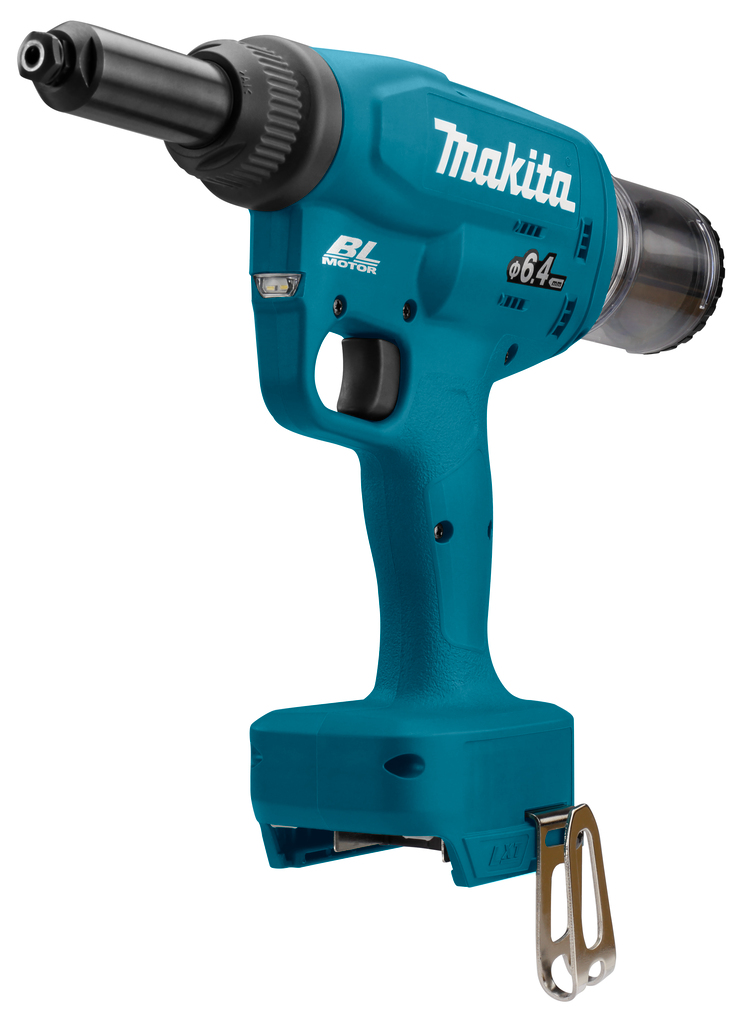

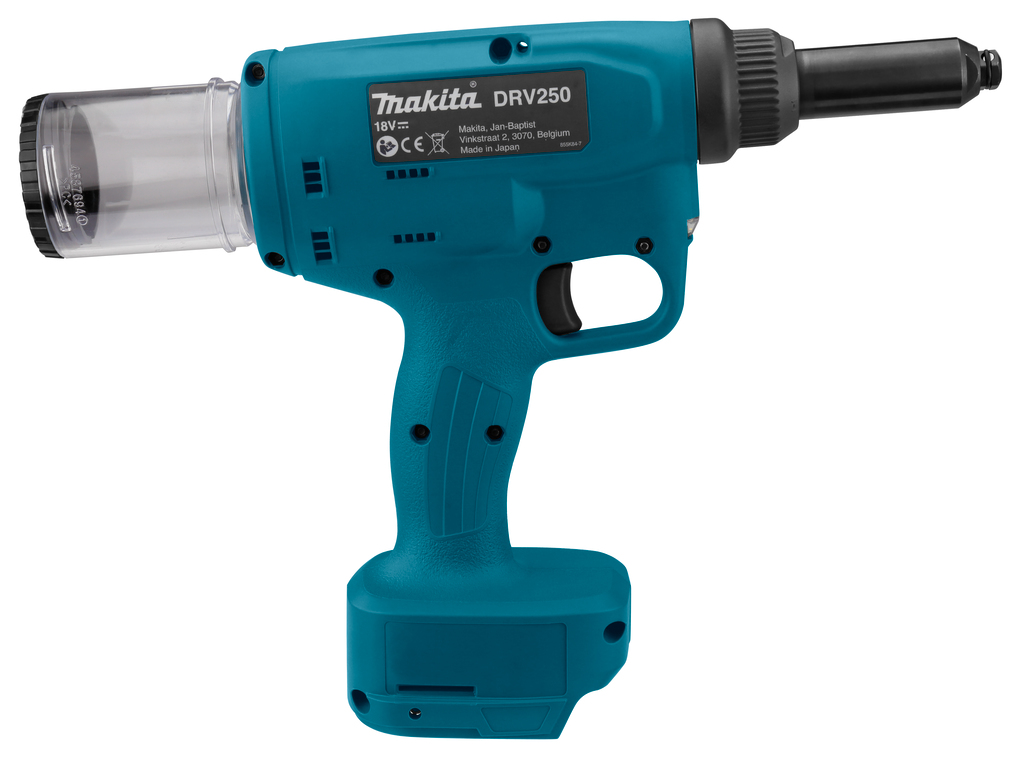

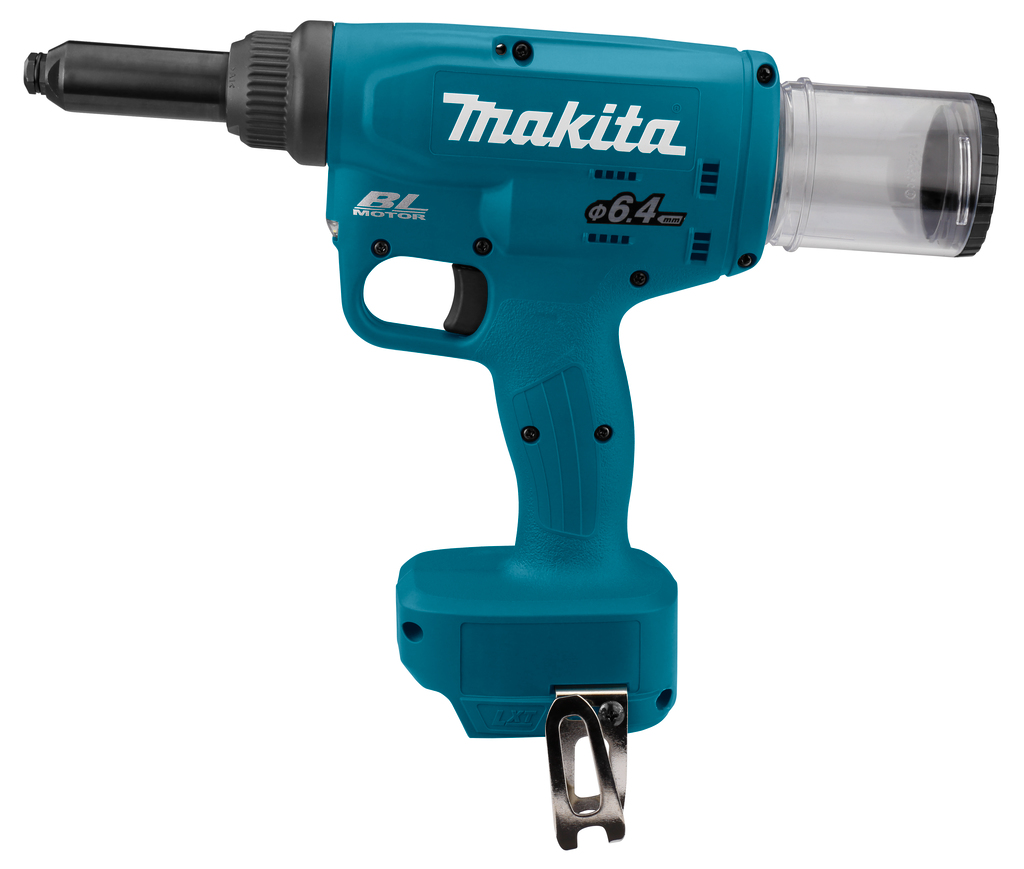

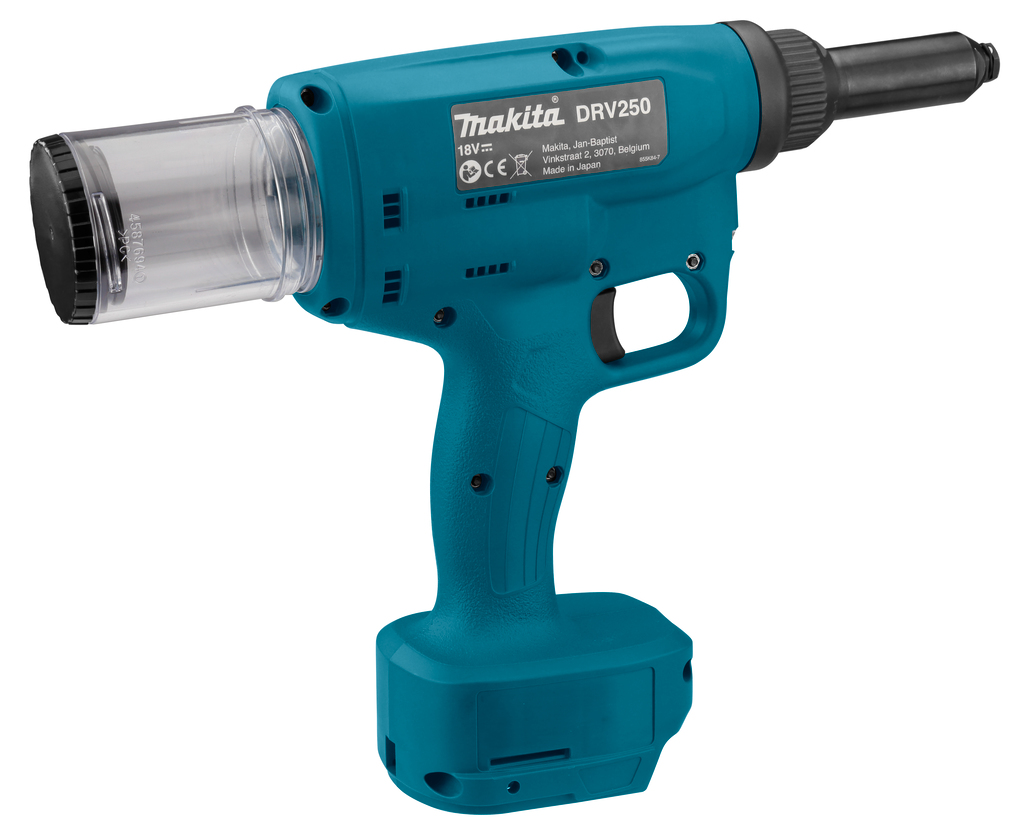

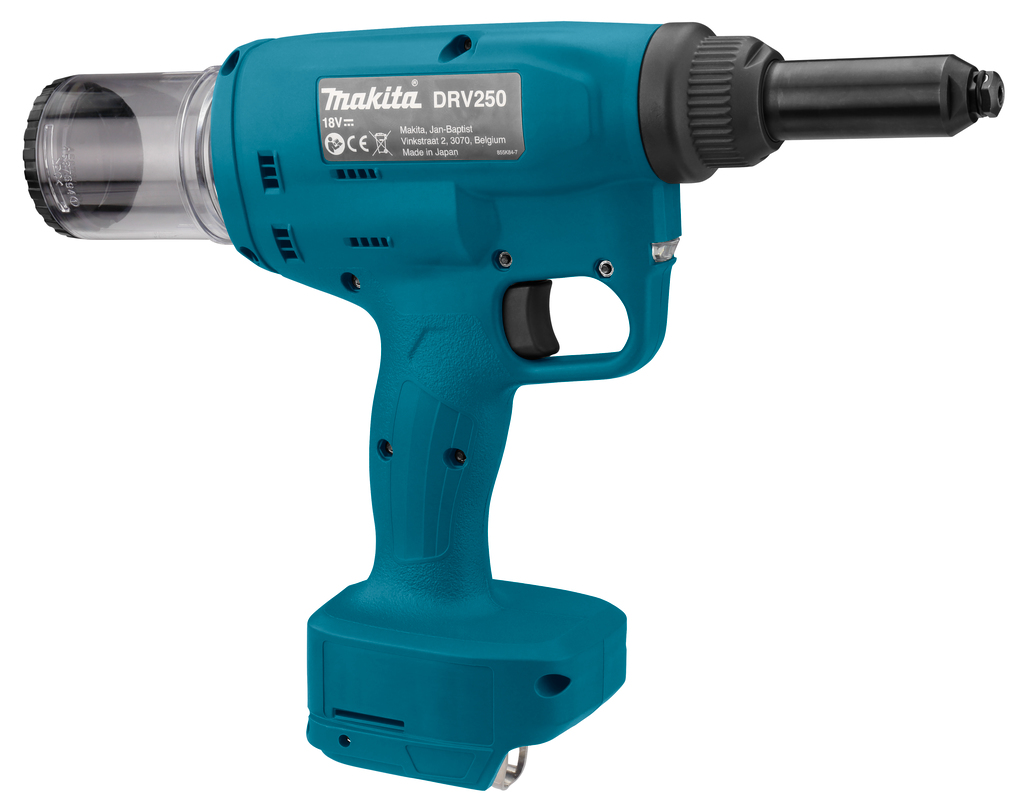

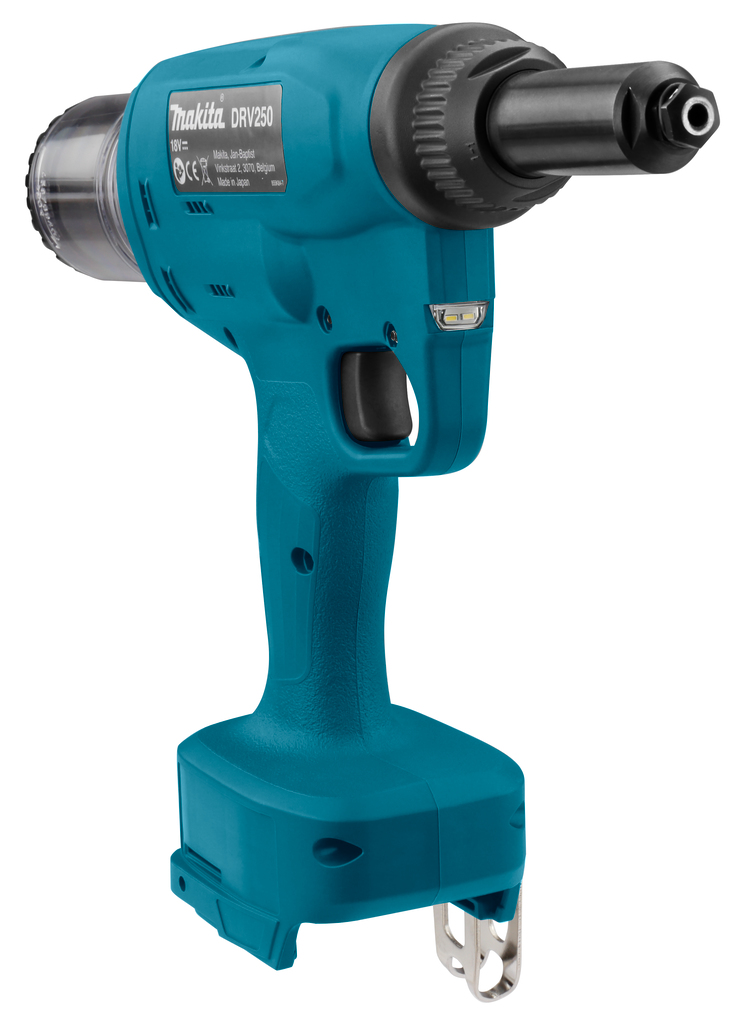

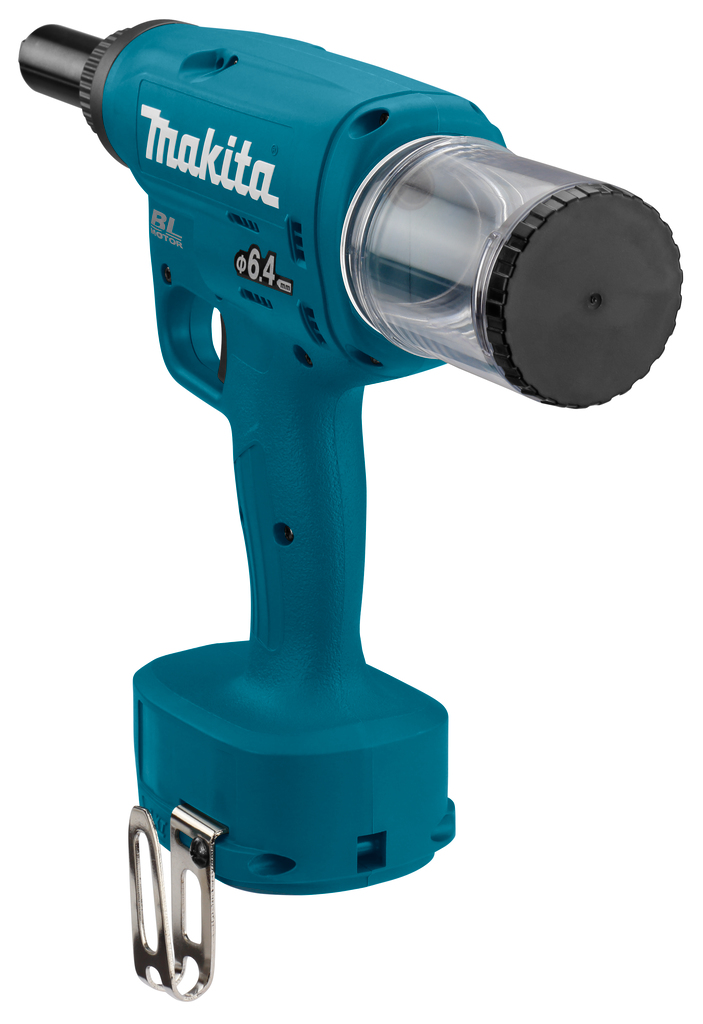

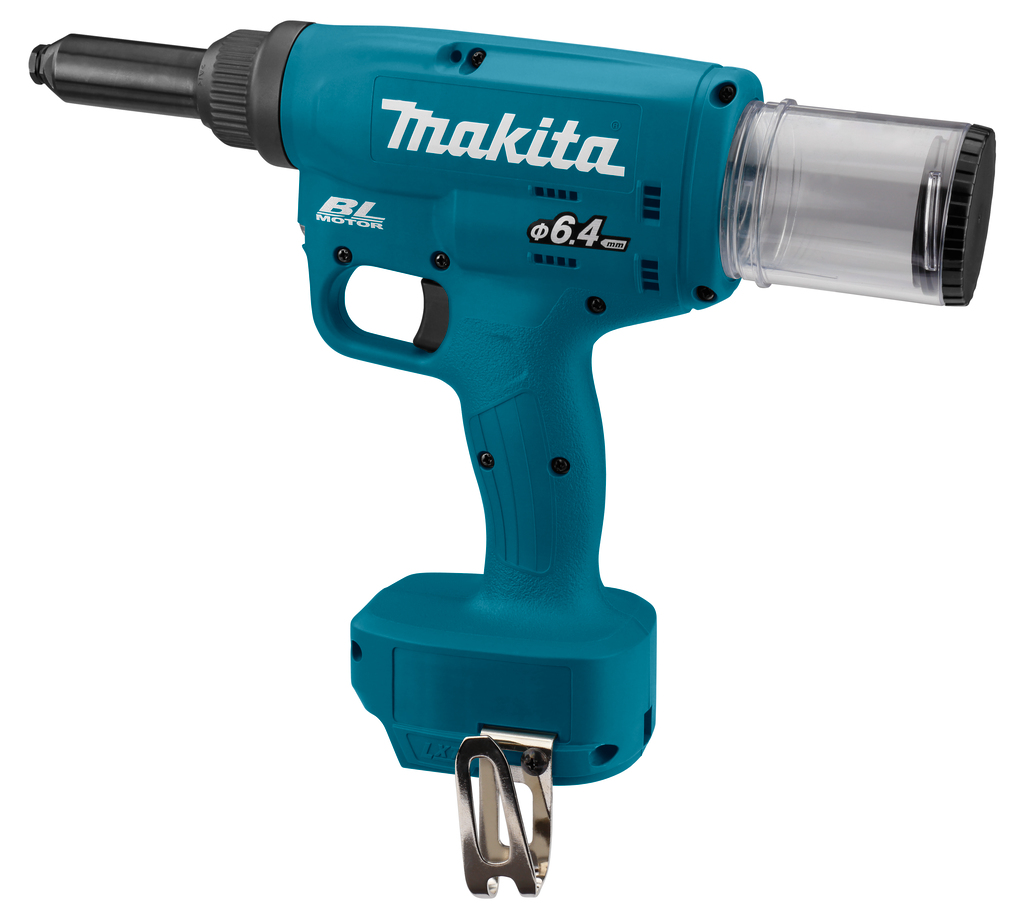

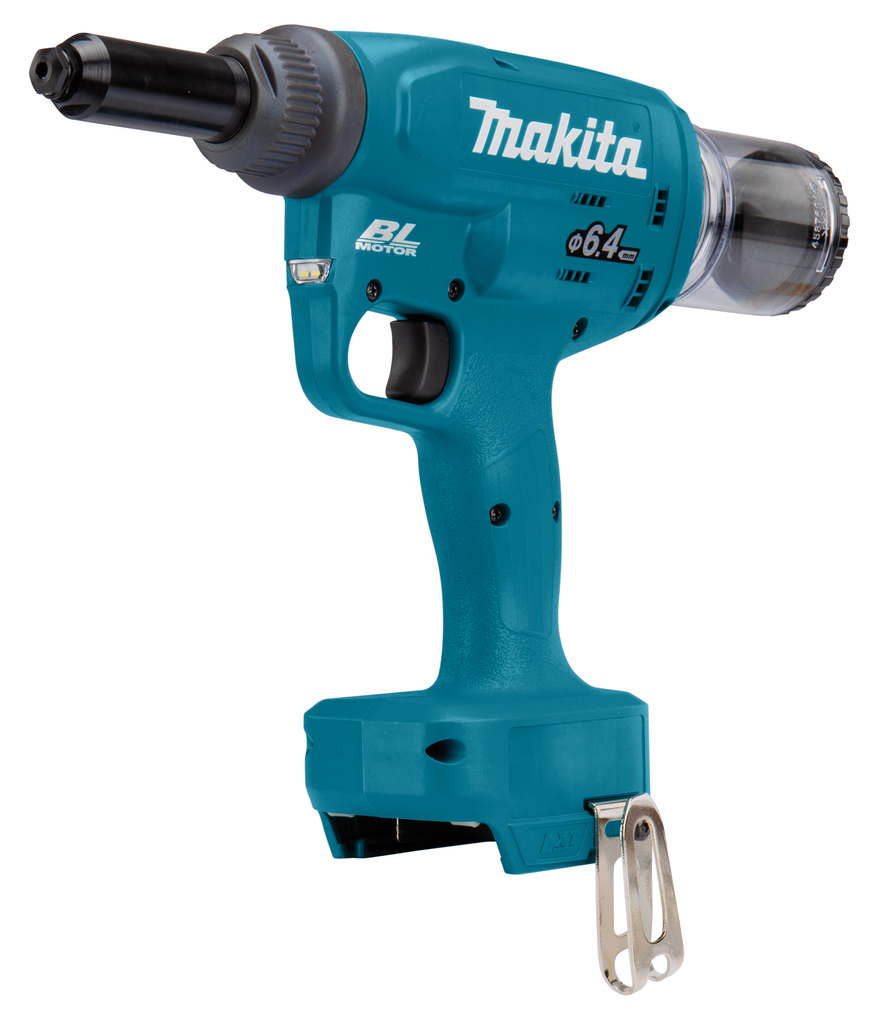

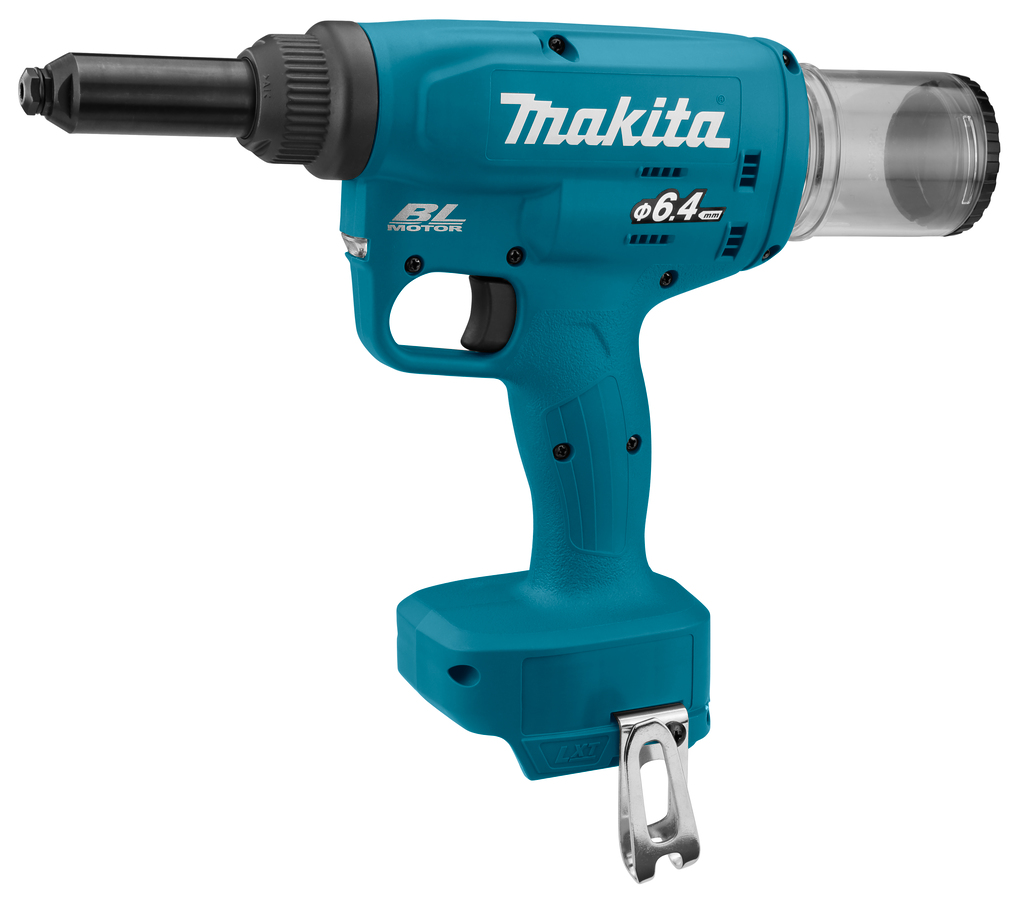

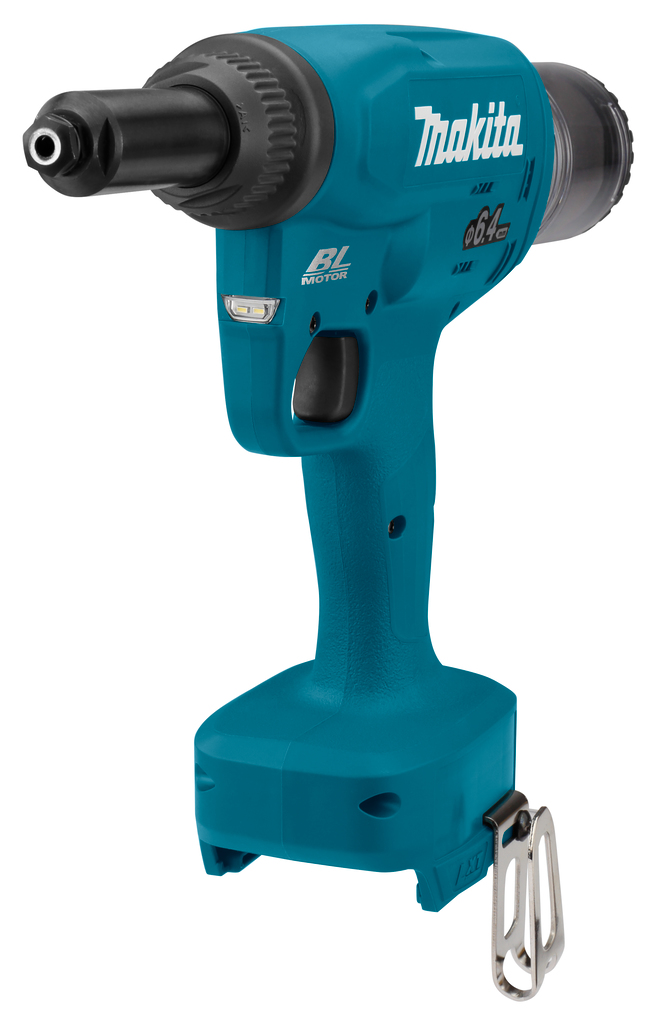

The Makita DRV250Z Cordless Rivet Tool LXT is a high-performance tool for blind riveting up to 6.4 mm. With a pulling force of 20 kN and a stroke length of 30 mm, this brushless tool offers maximum efficiency for industrial applications.

• Delivered without battery and charger
• Delivered in brown neutral carton

Features of the Makita DRV250 Rivet Gun

Brushless motor for more endurance, longer lifespan, and more compact design

• Delivered without battery and charger
• Fast and easy processing of blind rivets

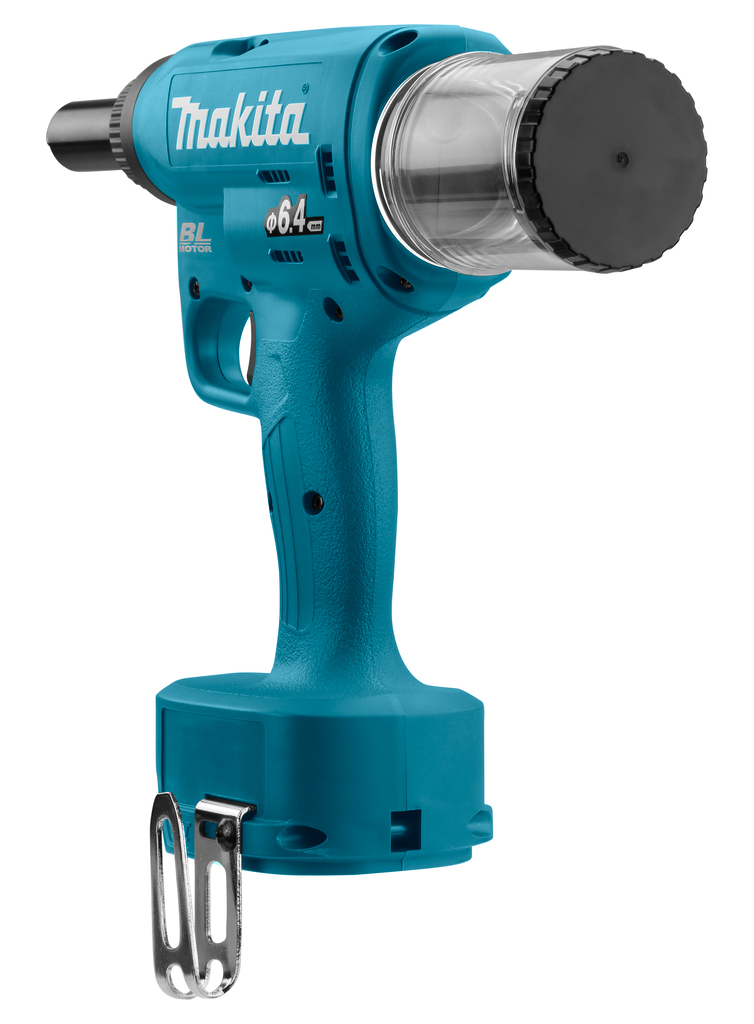

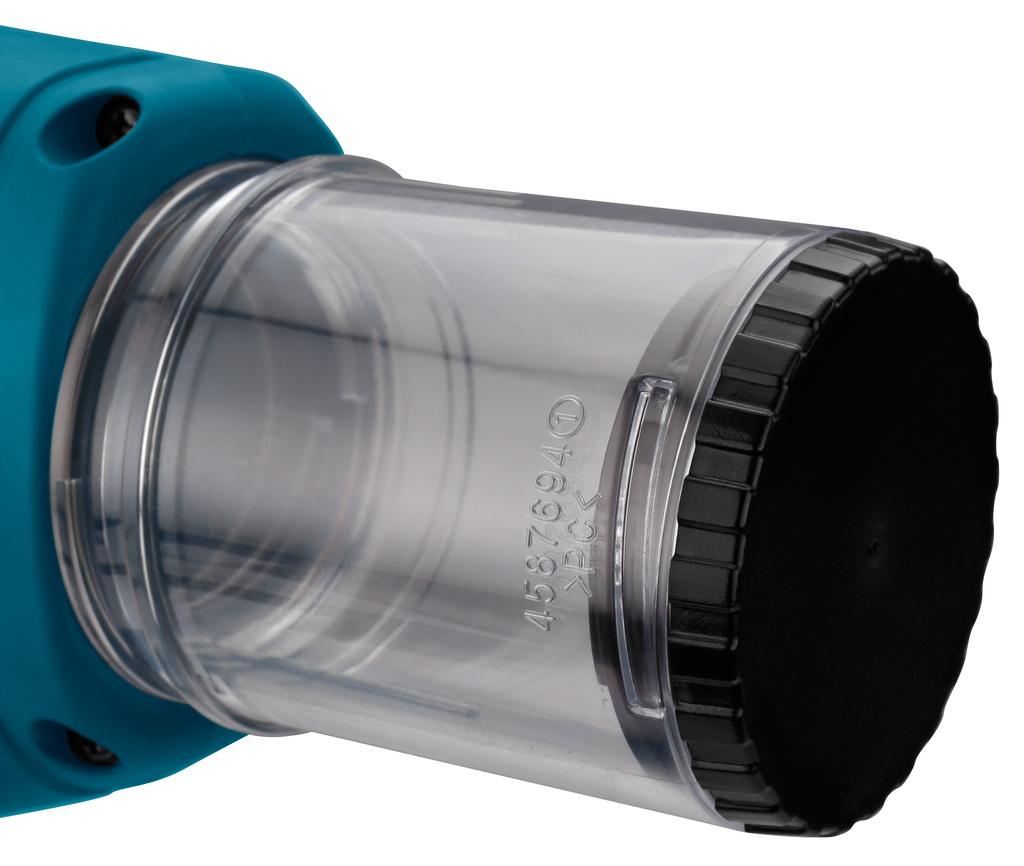

• Transparent reservoir for monitoring the processed mandrels
• Close-to-edge working thanks to a compact housing design with a minimum distance of 26 mm
• Mechanical holder – no manual guiding of the rivets required
• Dual LED lights for improved visibility
• Compatible with Makita 14.4V Li-Ion batteries
• Narrow jaw housing for use in tight spaces

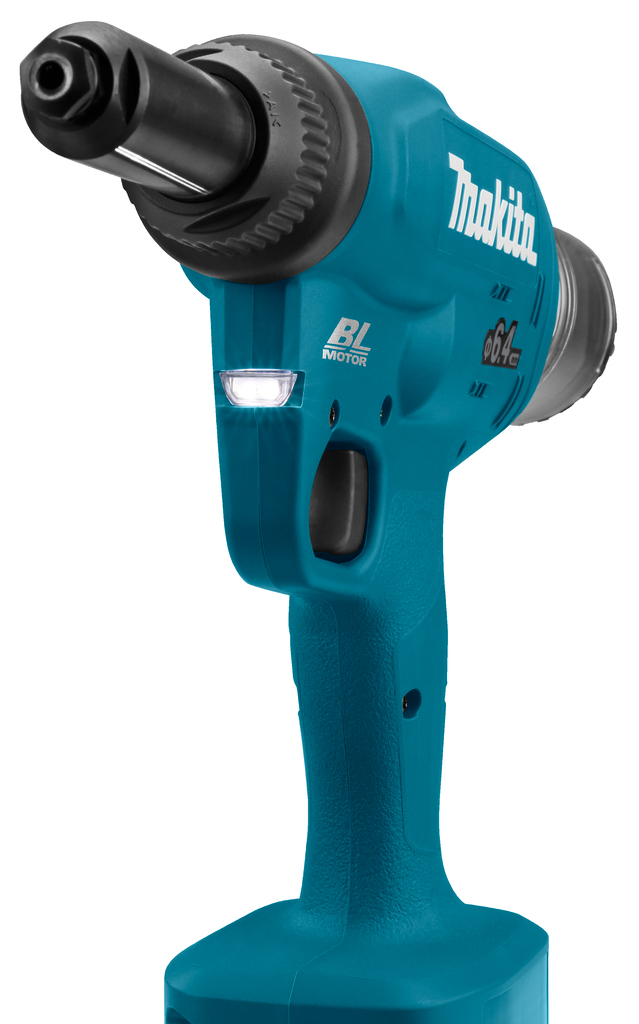

• Two LED lights with before- and after-glow functions to illuminate the work area

Technical Specifications of the Makita DRV250 Rivet Gun

• Battery Voltage: 18 V
• Steel cutting capacity (up to 400 N/mm²): 2.4 - 6.4 mm
• Stainless steel cutting capacity (up to 600 N/mm²): 2.4 - 4.8 mm
• Machine weight including battery (EPTA): 2.1 - 2.4 kg
• Product dimensions (L x W x H): 323 x 80 x 287 mm
• Max. setting force: 20 kN
• Stroke height: 30 mm
• Wire thickness: 4.8 - 6.4 mm
• Sound pressure level (dB): 74 dB(A)
• Noise K-value: 3 dB(A)
• Vibration: ≤ 2.5 m/s²
• Vibration K-value: 1.5 m/s²

Included in the delivery

• Nose piece set, slider, tube, 6.0mm
• Nose piece set, slider, 4.8mm
• Jaw grease DRV
• Nose piece set, slider, tube, 6.4mm
• M4x12 screw
• Hook
• Battery and charger not included
