Multifunctional combination saw for versatile performance.

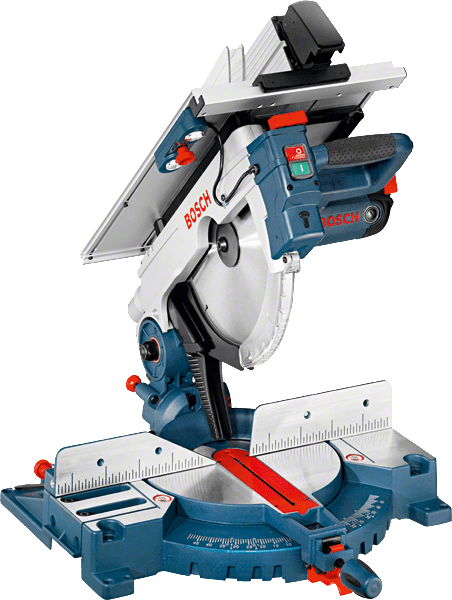

Discover the versatility of the Bosch Professional GTM 12 JL Combination saw in combination with the GTA 2600 Work Bench. This powerful tool combines a cross-cut saw, mitre saw and table saw in one. Equipped with a powerful 1,800 watt motor, this multi-function saw enables precise cuts in different materials. The integrated laser ensures exact alignment and even better results. Thanks to the included GTA 2600 base, work becomes even more comfortable. Experience precision and power in one with the Bosch Professional GTM 12 JL table saw and the GTA 2600 base.

Highlights

• Combination of cross-cut saw and mitre saw and circular saw in one unit, making it versatile for numerous applications
• Powerful 1,800 watt motor ensures fast work progress, both in the table saw and the cross-cut saw configuration
• Precise results are easily achieved thanks to the integrated laser

Features and application

• This combination saw was designed for sawing wood. It is compatible with the Bosch Click & Clean dust extraction system and various work tables.

Technical data

• Cutting capacity 0°: 95 x 150 mm
• Cutting capacity 45° mitre: 95 x 90 mm
• Mitre adjustment: 48 ° L / 48 ° R
• Tilt adjustment: 47 ° L / 2 ° R
• Tool dimensions (width x length x height): 660 x550 x400 mm
• No-load speed: 3,800 min-1
• Saw blade diameter: 305 mm
• Cutting height of circular saw: 51 mm
• Saw blade bore Ø: 30 mm
• Weight: 21 kg
• Rated input power: 1,800 W
• Voltage: 220 - 240 V
• Package dimensions (width x length x height): 604 x 707 x 462 mm

Total vibration values (vector sum of three directions)

• Sound pressure level: 91 dB(A)
• Sound power level: 104.5 dB(A)
• Uncertainty K: 3 dB

Sawing wood

• Vibration emission value ah: 3.4 m/s²
• Uncertainty K: 1.5 m/s²

Scope of delivery

• 1 x circular saw blade, Optiline Wood, 305 x 30 x 2.5 mm, 40 2 608 640 440
• Push stick 1 619 P04 042

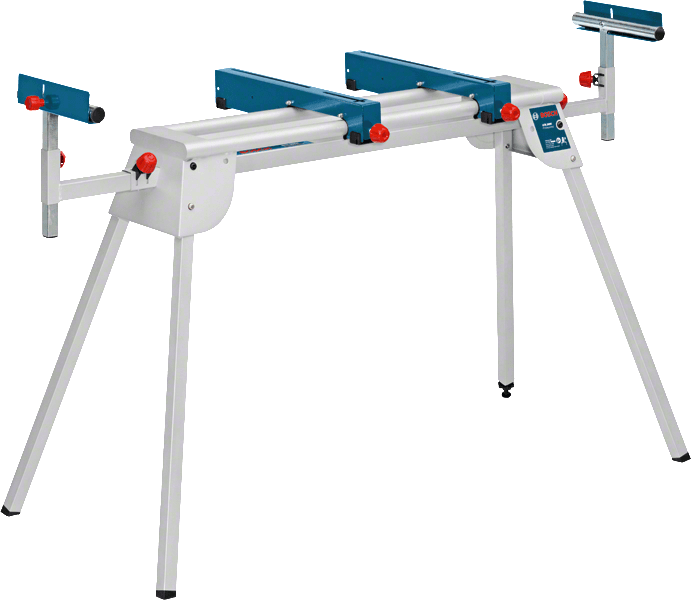

Underframe GTA2600

• GTA2600: Universal work table for cross-cut and mitre saws with material supports - optimum price-performance ratio
• Integrated material supports can be pulled out on both sides to fix long workpieces in place
• Made of mild steel
• Adaptable universal tool holder, compatible with almost all cross-cut and mitre saws on the market.
