Our most compact and ergonomic Bosch rotary hammer drill

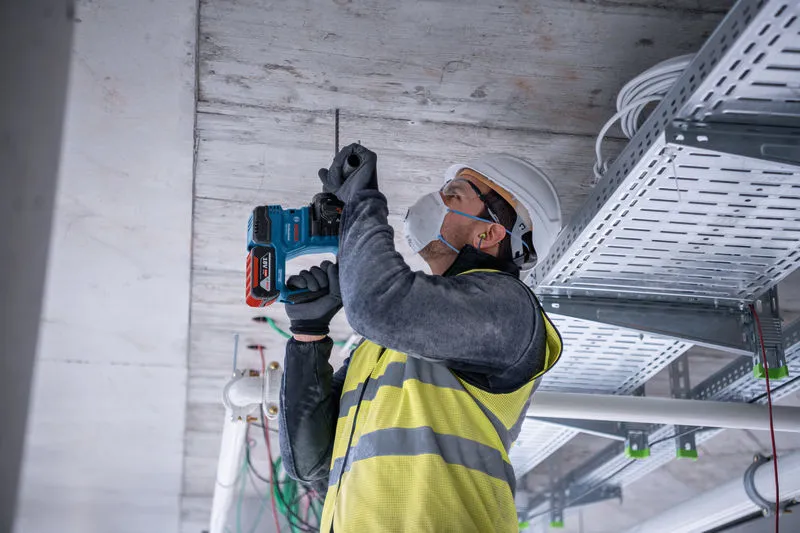

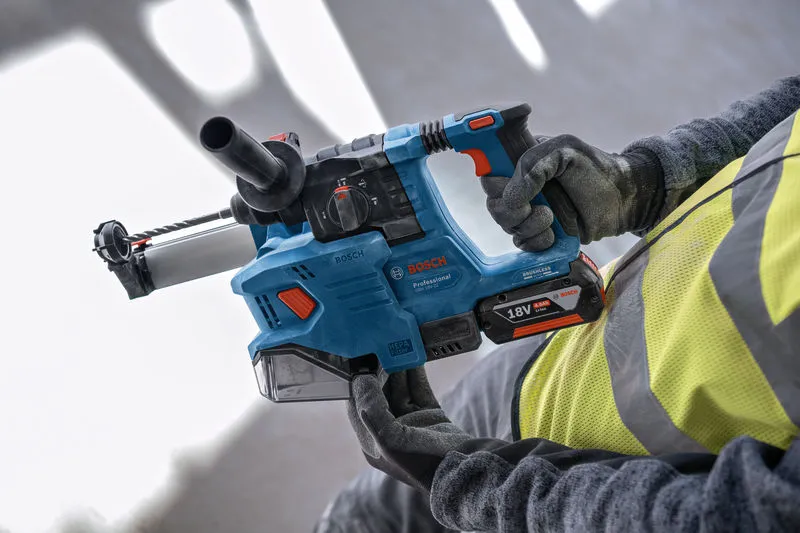

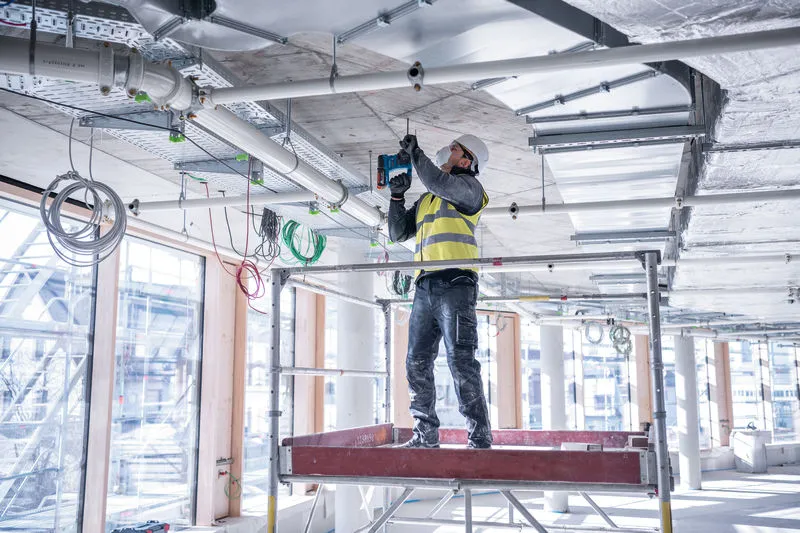

The GBH 18V-22 Professional rotary hammer offers comfort and control for easier work. With KickBack Control, Vibration Control and an ergonomic design, it enables precise drilling, especially when working overhead. The combination with the GDE 18V-12 Professional vacuum cleaner ensures a clean workplace. Ideal for tradesmen such as plumbers, carpenters and electricians, it offers power for 6 to 10 mm holes. This tool is compatible with the Bosch Professional 18V system and the AMPShare battery alliance for efficient battery life.

Highlights

• More comfort and less strain when drilling, even when working overhead
• Hammer drilling with low tool weight and specially developed, clip-on suction cup
• Uninterrupted work thanks to improved runtime

Scope of delivery

• Cleaning cloth
• Depth stop
• Without battery

Technical details

Drilling range

• Drilling Ø in concrete with hammer drill bits: 4 - 22 mm
• Optimum application range for concrete with hammer drill bits: 4 - 12 mm
• Max. Drilling diameter in metal: 13 mm
• Max. Drilling Ø wood: 20 mm

Total vibration values (hammer drilling in concrete)

• Vibration emission value ah: 14 m/s²
• Uncertainty K: 1.5 m/s²

Total vibration values (chiselling in concrete)

• Vibration emission value ah: 9.4 m/s²
• Uncertainty K: 1.5 m/s²

Noise/vibration information

• Sound pressure level: 94 dB(A)
• Sound power level: 102 dB(A)
• Uncertainty K: 3 dB

The most important data

• Impact energy (according to EPTA 05/2016): 1.9 J
• Number of blows at nominal speed: 0 - 4,675 bpm
• Rated speed: 0 - 1,050 min-1
• Battery voltage: 18.0 V
• Weight excl. battery: 2.3 kg
• Tool holder: SDS plus
• Packaging dimensions (width x length x height): 230 x 240 x 100 mm
